3ボートリリーフ弁
- YOUR SELECTIONS :
- All
| 作動 | 油圧図記号 | 種類 | 注文番号 | 流量 (l/min) |
圧力 (bar) |
キャビティ ツーリング |
-
3 ports
Ventable
Pilot Operated
Balanced Poppet
RV-11A-3G-Y-Z 60 350 11A-3 RV-2A-3G-Y-Z 95 350 2A-3 RV-17A-3G-Y-Z 200 350 17A-3 RV-19A-3G-Y-Z 480 350 19A-3 -
3 ports
Ventable
Pilot Operated
Balanced Piston
RV-163A-30-Y-Z 30 350 163A-3 RV-11A-30-Y-Z 60 350 11A-3 RV-2A-30-Y-Z 120 350 2A-3 RV-17A-30-Y-Z 240 350 17A-3 RV-19A-30-Y-Z 480 350 19A-3 -
3 ports
Modulating Element
with Relief Function
RV-11A-3B-Y-Z 40 350 11A-3 RV-2A-3B-Y-Z 80 350 2A-3 RV-17A-3B-Y-Z 160 350 17A-3 RV-19A-3B-Y-Z 320 350 19A-3 -
3 ports
Ventable Balanced
Piston Relief
main stage with integral
8A control cavity
RV-11A-30-Y-8 60 350 11A-3 RV-2A-30-Y-8 120 350 2A-3 RV-17A-30-Y-8 240 350 17A-3 RV-19A-30-Y-8 480 350 19A-3 -
3 ports
Ventable Pilot
Operated Balanced Poppet
main stage with integral
8A/ 08W control cavity
RV-11A-3G-Y-8 60 350 11A-3 RV-2A-3G-Y-Z 120 350 2A-3 RV-17A-3G-Y-Z 240 350 17A-3 RV-19A-3G-Y-Z 480 350 19A-3 -
3 ports
Fast-Acting
Ventable
RV-11A-30-Y-Z-85 60 350 11A-3 RV-2A-30-Y-Z-85 120 350 2A-3 RV-17A-30-Y-Z-85 240 350 17A-3 RV-19A-30-Y-Z-85 480 350 19A-3 -
3 ports
Fast-Acting, Ventable
Pilot Operated
Balanced Poppet
RV-11A-3G-Y-Z-85 60 350 11A-3 RV-2A-3G-Y-Z-85 95 350 2A-3 RV-17A-3G-Y-Z-85 200 350 17A-3 RV-19A-3G-Y-Z-85 480 350 19A-3 -

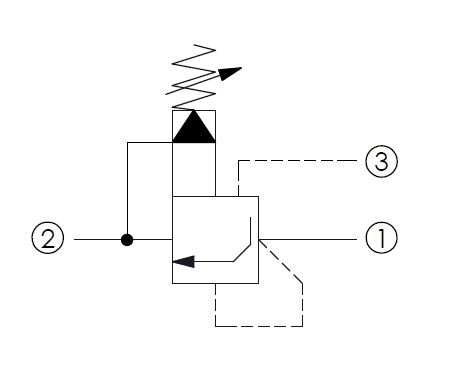

3 ports
Anti-Shock, Ventable, Pilot Operated, Balanced Poppet
RT-19A-3G-Y-Z 480 350 19A-3 -
3 ports .png)
Dual Pressure, Pilot Operated
RH-11A-30-Y-Z 60 210 11A-3
