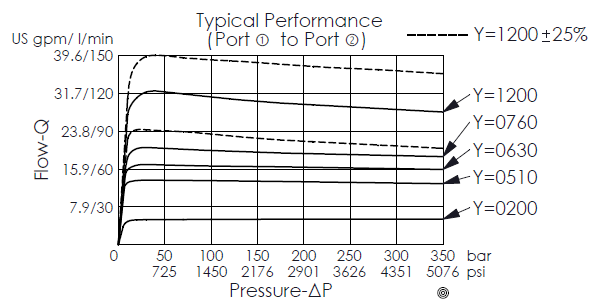

  • 性能曲線
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 16W-2
Rated Flow 31.7 gpm 120 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/2 in. 38 mm
Valve Installation Torque 44 - 52 lbf-ft 60 - 70 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Weight 1.1 lbs (Z=L) 0.5 kg (Z=L)
This is a direct-operated, spool type, fixed orifice, pressure-compensated flow control valve. Regardless of load pressure changes, the valve maintains a constant flow from port 1 to port 2. Reverse flow from port 2 to port 1 is limited by the diameter of the selected control orifice and is not pressure-compensated.

  • If you need detailed information about port 2 to port 1, please contact the Winner sales department.
  • Flow setting (configuration Y) must be specified when ordering
  • Factory-set flow ratings are within ±10% of the requested setting.
  • If specific flow accuracy is needed, please contact Winner’s sales department.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
