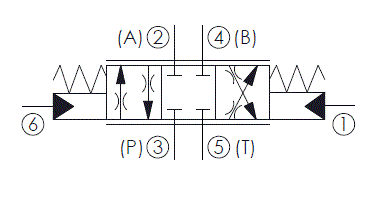

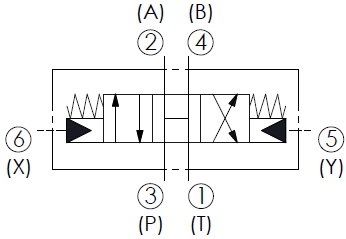

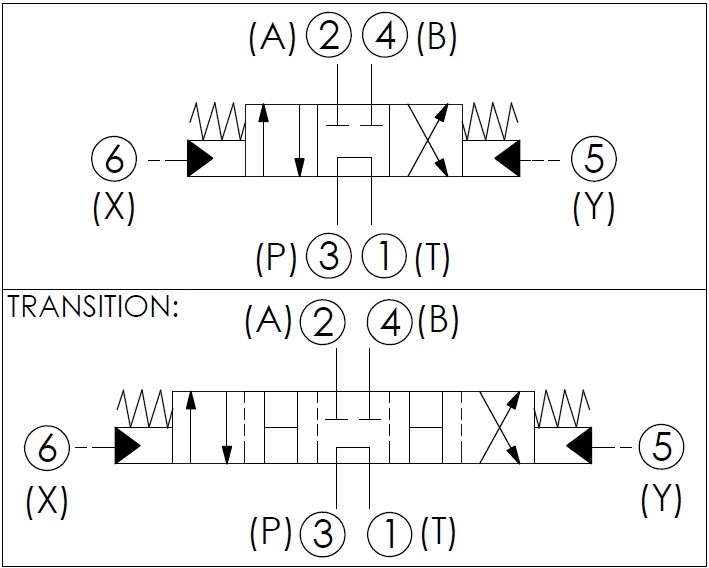

方向制御弁
| 油圧図記号 | 種類 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
Direct-acting, 2-way 2-position, pilot-to-shift, normally closed, drain | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-21A-44-Y-Z | 2 | 350 | 21A-4 |
 |
Direct-acting, 2-way 2-position, pilot-to-shift, normally open, drain | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-21A-45-Y-Z | 2 | 350 | 21A-4 |
 |
Piloted, 2-way 2-position, spool, normally closed, vented, atmospherically referenced | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-10W-X-Y-Z | 38 | 350 | 10W-3 |
 |
Piloted, 2-way 2-position, spool, normally open, vented, atmospherically referenced | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-10W-X-Y-Z | 38 | 350 | 10W-3 |
 |
Piloted, 2-way 2-position, spool, normally open, internal vent | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-10W-X-Y-Z | 40 | 350 | 10W-3 |
 |
Direct-acting, normally closed, double-lock, manually operated bi-directional flow | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DT-13A-2A-51-Z-0230 | 23 | 350 | 13A-2 |
| DT-13A-2A-51-Z-0400 | 40 | 350 | 13A-2 | ||||||
 |
Direct-acting, normally open, bi-directional flow, manual operated double lock | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DT-13A-2A-52-Z-0400 | 40 | 350 | 13A-2 |
 |
Pilot operated, 3-way 2-position, with internal drain to port 3, normally closed | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DP-11A-3N-Y-Z | 28 | 350 | 11A-3 |
| DP-2A-3N-Y-Z | 60 | 350 | 2A-3 | ||||||
 |
Pilot operated, 3-way 2-position, with internal drain to port 3 | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DP-11A-3Q-Y-Z | 28 | 350 | 11A-3 |
| DP-2A-3Q-Y-Z | 60 | 350 | 2A-3 | ||||||
 |
Pilot operated, 3-way 2-position, with internal drain to port 3, normally open | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DP-11A-3M-Y-Z | 28 | 350 | 11A-3 |
| DP-2A-3M-Y-Z | 60 | 350 | 2A-3 | ||||||
 |
Pilot operated, 3-way 2-position, with internal drain to port 3 | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DP-2A-3P-Y-Z | 60 | 350 | 2A-3 |
 |
Direct-acting, 3-way 2-position, port 2 to port 3, shift port 1 to port 2, internal drain | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-11A-3Q-Y-Z | 28 | 350 | 11A-3 |
| DD-2A-3Q-Y-Z | 60 | 350 | 2A-3 | ||||||
 |
Manual rotary, 3-way, 2-position, 0° - 90° | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DR-10W-3A-11-Z | 38 | 240 | 10W-3 |
 |
Direct acting, 3-way 2-position, port 3 to port 4, shift port 2 to port 3 | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-21A-4R-Y-Z | 28 | 350 | 21A-4 |
 |
Direct acting, 3-way 2-position, normally-closed, shift port 2 to port 3 | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-21A-4N-Y-Z | 28 | 350 | 21A-4 |
 |
Piloted, 3-way 2-position, spool, vented, atmospherically referenced | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-10W-4S-Y-Z | 38 | 240 | 10W-4 |
| DD-12W-4S-Y-Z | 80 | 240 | 12W-4 | ||||||
| DD-16W-4S-Y-Z | 170 | 240 | 16W-4 | ||||||
 |
3-way 2-position, vent to shift | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DQ-31A-40-Y-Z | 60 | 350 | 31A-4 |
| DQ-32A-40-Y-Z | 120 | 350 | 32A-4 | ||||||
| DQ-33A-40-Y-Z | 240 | 350 | 33A-4 | ||||||
| DQ-34A-40-Y-Z | 480 | 350 | 34A-4 | ||||||
 |
3-way 2-position, vent to shift | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DQ-31A-41-Y-Z | 60 | 350 | 31A-4 |
| DQ-32A-41-Y-Z | 120 | 350 | 32A-4 | ||||||
| DQ-33A-41-Y-Z | 240 | 350 | 33A-4 | ||||||
| DQ-34A-41-Y-Z | 480 | 350 | 34A-4 | ||||||
 |
Piloted, 3-way 2-position, spool, internal vent | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-10W-42-Y-N | 38 | 240 | 10W-4 |
 |
Piloted, 3-way 2-position, spool, port 3 to port 2, shift port 3 to port 4 | 注文番号 | 流量(l/min) | 圧力(bar) | キャビティ | DD-12WH-5S-Y-Z | 80 | 240 | 12WH-5 |
