Note: Data may vary by configuration. See CONFIGURATION section.
| Cavity |
16A-2 |
| Rated Flow |
89.82 gpm
340 L/min |
| Maximum Operating Pressure |
5000 psi
350 bar |
| Valve Hex Size |
1-1/4 in.
31.7 mm |
| Valve Installation Torque |
148 - 158 lbf-ft
200 - 215 Nm |
| Adjustmant Screw Internal Hex Size |
5/32 in.
4 mm |
| Locknut Size |
9/16 in.
14.27 mm |
| Locknut Torque |
6 - 7 lbf-ft
9 - 10 Nm |
| Weight |
1.21 lbs (Z=L)
0.55 kg (Z=L) |
This is a direct-operated, fully adjustable needle flow control valve. This valve maintains a constant flow from port 1 to port 2 or from port 2 to port 1 based on the adjustment setting. It is not pressure-compensated.
-

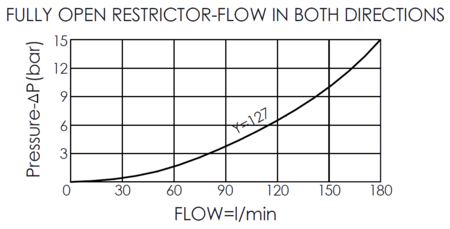

The rated flow is a reference value, actual flow depends on the pressure drop.
-
Based on the same cavity, this valve is suitable for high flow applications. Turn completely clockwise to fully close.
-
A variety of seal kit materials for different applications, see seals information under Technical Reference.
-
Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
-
WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
-
Winner guarantees that all products performance a 100% functional test before shipment.
