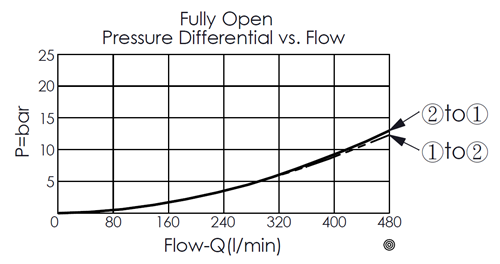

  • 性能曲線
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 24A-4 (24AB-4)
Rated Flow 126.8 gpm 480 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-5/8 in. 41.2 mm
Valve Installation Torque 358 - 369 lbf-ft 465 - 500 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Maximum Leakage Approximately 0.7 cc/min at 5000 psi 0.7 cc/min at 350 bar
Weight 3.68 lbs (Z=L) 1.67 kg (Z=L)
This is a balanced poppet, normally close, logic element valve. The valve remains closed when pilot pressure is applied to port 3 until it exceeds the integral pilot relief setting. The poppet shifts to allow flow between port 1 and port 2.

  • The maximum leakage is approximately 0.7 cc/min at 350 bar (5000 psi), with a very low leakage rate between port 1 and port 2.
  • All ports can withstand up to 350 bar (5000 psi).
  • When the pilot pressure drops to setting approximately 85 % of cracking value, the valve will return to the spring biased closed position.
  • Back pressure at port 4 (drain) adds directly to the relieving setting at a 1:1 ratio.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
  • Recommendation of minimum pilot pressure required to shift valve: 28 bar (port 3).
