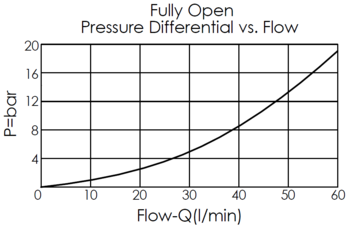

  • 性能曲線
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 21A-4
Rated Flow 15.85 gpm 60 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 7/8 in. 22.22 mm
Valve Installation Torque 30 - 37 lbf-ft 40 - 50 Nm
Maximum Leakage Approximately 0.7 cc/min at 5000 psi 0.7 cc/min at 350 bar
Weight 0.35 lbs 0.16 kg
This is pilot-to-close, balanced poppet, normally open logic element valve primarily used for bi-directional flow switching applications. When pilot pressure is applied at port 3, the valve closes, blocking flow between port 1 and port 2. Pressure at port 4 adds directly to the valve reseat pressure at a 1:1 ratio.

  • When spring configuration Y=28, we recommend using a pilot pressure above 28 bar (400 psi) at port 3 when ports 1 and 2 are at 350 bar (5000 psi). This ensures quick shifting across various pressure and flow conditions.
  • When spring configuration Y=23, we recommend using a pilot pressure above 23 bar (350 psi) at port 3 when ports 1 and 2 are at 350 bar (5000 psi). This ensures quick shifting across various pressure and flow conditions.
  • If you have any question about using condition of shifting pressure and circuit, please consult with the Winner sales department.
  • The maximum leakage is approximately 0.7 cc/min at 350 bar (5000 psi).
  • All ports can withstand up to 350 bar (5000 psi).
  • Approximately 1 drop (0.07 cc) of fluid will pass from the pilot area to the vented spring chamber every 4000 cycles.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
