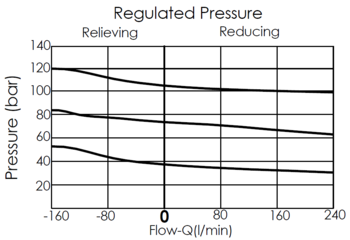

  • 性能曲線
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 17A-3
Rated Flow 42.27 gpm 160 L/min
Control Pilot Flow 0.07 - 0.09 gpm 0.25 - 0.33 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/4 in. 31.7 mm
Valve Installation Torque 148 - 158 lbf-ft 200 - 215 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 -10 Nm
Weight 1.23 lbs (Z=L) 0.56 kg (Z=L)
This is a pilot-operated, spool-type reducing/relieving valve, it can be used in any application where a regulated pressure lower than system pressure is required. It allows bi-directional flow between port 2 and port 1. When the pressure at port 1 exceeds the pressure setting, the spool shifts to restrict flow at port 2, regulating the pressure at port 1. If the pressure at port 1 continues to rise above the valve setting, the spool shifts further to relieve excess pressure through port 3 (tank) until the set pressure is restored.

  • When X=33, the lowest pressure will be a bit higher than standard.
  • Please note the pressure differential between inlet and reducing port when select the proper adjustment range.
  • Pressure at port 3 adds directly to the valve setting at a 1:1 ratio.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
