カートリッジ弁
  • 技術データ
  • 製品説明

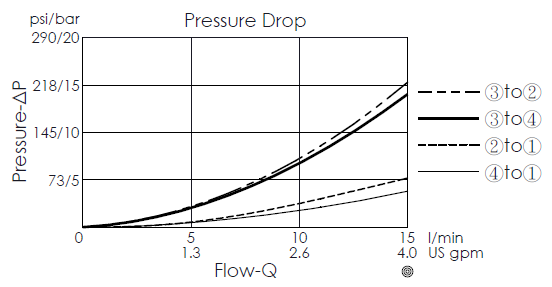

  • 性能曲線
  • 技術リファレンス
  • ファイル

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-4
Rated Flow 2.91 gpm 11 L/min
Maximum Operating Pressure 3400 psi 240 bar
Valve Hex Size 1 in. 25.4 mm
Valve Installation Torque 26 - 33 lbf-ft 35 - 45 Nm
Weight 0.42 lbs (Z= blank) 0.19 kg (Z= blank)
This is a direct-acting, spool-type, 4-way, 3-position, manual rotary directional valve. In the center position, all ports are closed. In the 45° counterclockwise position, the valve allows flow between ports 1 and 4, and between ports 2 and 3. In the 45° clockwise position, the valve allows flow between ports 1 and 2, and between ports 3 and 4. During the transition, all ports are blocked.

  • Manual Rotary Components Installation Instructions: Please refer to Winner accessories. (J.990.123.E Directional Valve Manual Rotary Components – Installation Instructions)
  • If you need to order the lever separately or require other specifications, please contact the Winner sales department.
  • Spool valves will have normal leakage due to spool clearance. The maximum leakage is approximately 80 cc/min at 240 bar (3400 psi) (VG 32, 40℃).
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
