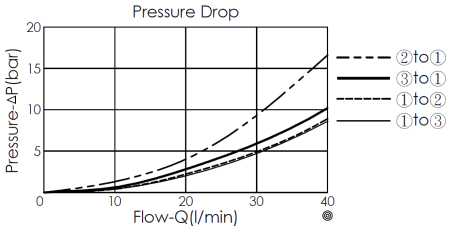

  • Performance Curve
  • Transition
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-3
Rated Flow 10.04 gpm 38 L/min
Maximum Operating Pressure 3400 psi 240 bar
Valve Hex Size 1 in. 25.4 mm
Valve Installation Torque 26 - 33 lbf-ft 35 - 45 Nm
Weight 0.66 lbs (Z=R-1) 0.3 kg (Z=R-1)

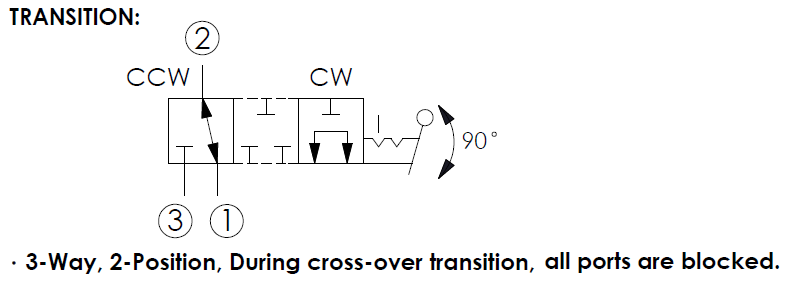

This is a direct-acting, spool type, 3-way 2-position, manual rotary directional valve. This valve will direct flow between ports 2 and 1 and block port 3 in the counterclockwise position. By turning the lever 90˚ clockwise, flow will be directed between ports 3 and 1 and port 2 will be blocked. During cross-over transition, all ports are blocked.

  • Manual Rotary Components Installation Instructions: Please refer to Winner accessories. (J.990.123.E Directional Valve Manual Rotary Components – Installation Instructions)
  • If you need to order the lever separately or require other specifications, please contact the Winner sales department.
  • Spool valves will have normal leakage due to spool clearance. The maximum leakage is approximately 80 cc/min at 240 bar (3400 psi) (VG 32, 40℃).
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
