Logic Element, 4 Ports

Pagination:
Symbol Description
Pilot-to-open, normally closed, balanced poppet, logic element Main Code Flow(l/min) Pressure(bar) Cavity LB-21A-4S-Y-Z 60 350 21A-4
LB-22A-4S-Y-Z 120 350 22A-4
LB-23A-4S-Y-Z 240 350 23A-4
LB-24A-4S-Y-Z 480 350 24A-4
Normally closed, balanced poppet, logic element Main Code Flow(l/min) Pressure(bar) Cavity LB-21A-4P-Y-Z 60 350 21A-4
LB-22A-4P-Y-Z 120 350 22A-4
LB-24A-4P-Y-Z 480 350 24A-4
Normally closed, balanced poppet, vent-to-open, logic element with Integral 8A-2/08W-2 control cavity Main Code Flow(l/min) Pressure(bar) Cavity LB-24A-4R-Y-Z 480 350 24A-4
Pilot-to-closed, normally open, balanced poppet, logic element Main Code Flow(l/min) Pressure(bar) Cavity LN-21A-4S-Y-Z 60 350 21A-4
LN-22A-4S-Y-Z 120 350 22A-4
LN-23A-4S-Y-Z 240 350 23A-4
LN-24A-4S-Y-Z 480 350 24A-4
Normally open, balanced poppet, logic element Main Code Flow(l/min) Pressure(bar) Cavity LN-21A-4P-Y-Z 60 350 21A-4
LN-22A-4P-Y-Z 120 350 22A-4

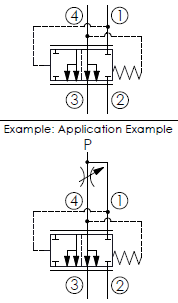

Bypass/restrictive, priority modulating element Main Code Flow(l/min) Pressure(bar) Cavity LR-10W-40-Y-Z 38 240 10W-4
LR-12W-40-Y-Z 80 240 12W-4
LR-16W-40-Y-Z 100 240 16W-4
Bypass/restrictive, priority modulating element Main Code Flow(l/min) Pressure(bar) Cavity LR-31A-41-Y-Z 60 350 31A-4
LR-32A-41-Y-Z 120 350 32A-4
LR-33A-41-Y-Z 240 350 33A-4
Normally closed, vent-to-open, balanced poppet, logic element Main Code Flow(l/min) Pressure(bar) Cavity LB-22A-4R-Y-Z 120 350 22A-4
Normally closed, pilot-to-open, balanced poppet, logic element Main Code Flow(l/min) Pressure(bar) Cavity LB-27MA-4S-Y-Z 90 350 27MA-4
