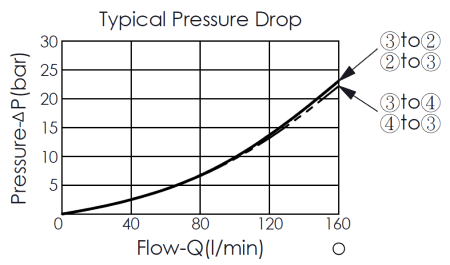

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 14WA-5
Rated Flow 42.27 gpm 160 L/min
Rated Pressure 5000 psi 350 bar
Maximum Operating Pressure 6090 psi 420 bar
Maximum Leakage Approximately 275 cc/min at 2900 psi 275 cc/min at 200 bar
Valve Hex Size 1-3/8 in. 35 mm
Valve Installation Torque 63 lbf-ft 85 Nm
Weight 0.73 lbs 0.33 kg
This is a direct-acting, spool-type, 3-way 2-position directional valve. It allows flow between port 3 and port 2 with a spring-biased spool. The spool will shift when pilot at port 1 with sufficient pressure to overcome the spring bias and allow flow between port 4 and port 3, while port 2 is blocked. Flow is allowed between port 2, 3 and port 4 during the transition.

  • Spool valves will have normal leakage due to spool clearance.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
