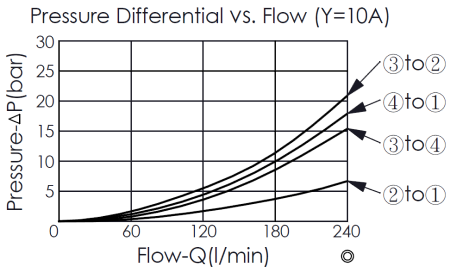

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 63A-6
Rated Flow 42.27 - 63.4 gpm 160 - 240 L/min
Maximum Operating Pressure 5000 psi 350 bar
Minimum Pilot Pressure Required to Shift Valve 130 psi 9 bar
Maximum Leakage Approximately 30 cc/min at 1000 psi 30 cc/min at 70 bar
Valve Hex Size 1-1/4 in. 31.7 mm
Valve Installation Torque 148 - 158 lbf-ft 200 - 215 Nm
Weight 1.87 lbs 0.85 kg
This is a pilot-operated, spool-type, 4-way 2-position, detented pilot-to-shift directional valve. It allows flow from P to A and from B to T with a spring-biased spool. When the pilot pressure at port 5 rises and overcomes the spring bias against the spool, the valve shifts to allow flow from P to B and from A to T.

  • The minimum pilot pressure required to shift valve is 9 bar (130 psi).
  • Spool valves will have normal leakage due to spool clearance.
  • All ports will accept 350 bar (5000 psi).
  • Backpressure at port 6 is directly against pilot pressure at port 5.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
