Cartridge Valves
  • Technical Data
  • Product Description

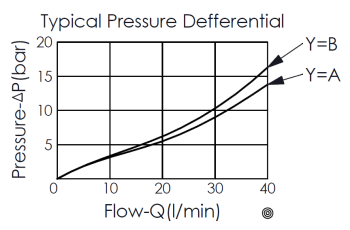

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-2
Rated Flow 7.93 gpm 30 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1 in. 25.4 mm
Valve Installation Torque 26 - 39 lbf-ft 35 - 45 Nm
Weight 0.2 lbs 0.09 kg
This is a screw-in cartridge type filter. The lifespan of the filter valve depends on the system’s initial cleanliness and the level of contamination that passes through during operation. Flow is allowed only from port 2 to port 1; reverse flow (port 1 to port 2) is not permitted.

  • The differential crush pressure is 210 bar (3,000 psi).
  • The filter valve is intended to act as a protector to protect the valve unit from particles.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
