Note: Data may vary by configuration. See CONFIGURATION section.
| Cavity |
18A-2 (18AB-2) |
| Rated Flow |
0.26 - 52.83 gpm
1 - 200 L/min |
| Pressure Min.-Max. |
145 - 5000 psi
10 - 350 bar |
| Valve Hex Size |
1-5/8 in.
41.2 mm |
| Vavle Installation Torque |
343 - 369 lbf-ft
465 - 500 Nm |
| Adjsutment Screw Internal Hex Size |
5/32 in.
4 mm |
| Locknut Hex Size |
9/16 in.
14.27 mm |
| Locknut Torque |
6 - 7 lbf-ft
9 - 10 Nm |
| Weight |
2.05 lbs (Z= N, NP); 2.6 lbs (Z=L, LP)
0.93 kg (Z= N, NP); 1.18 kg (Z=L, LP) |

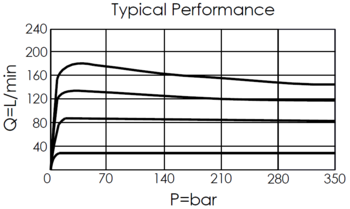

This is a direct-operated, spool type, fixed orifice, pressure-compensated flow control valve. Regardless of load pressure changes, the valve maintains a constant flow from port 1 to port 2. Reverse flow from port 2 to port 1 is limited by the diameter of the selected control orifice and is not pressure-compensated.
-
Flow setting (configuration Y) must be specified when ordering
-
Factory-set flow ratings are within ±10% of the requested setting.
-
If specific flow accuracy is needed, please contact Winner’s sales department.
-
Working parts are heat-treated and high-precision ground to increase hardness for long life.
-
A variety of seal kit materials for different applications, see seals information under Technical Reference.
-
Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
-
WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
-
Winner guarantees that all products performance a 100% functional test before shipment.
