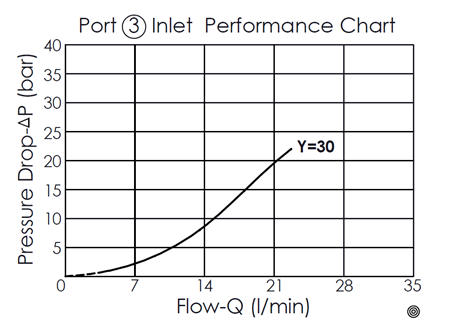

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 16W-4
Rated Inlet Flow 43.59 gpm 165 L/min
Flow Accuracy 10% from 40 - 100% of Max. Inlet Flow
Pressure Min. - Max. 150 psi - 5000 psi 10 - 350 bar
Valve Hex Size 1-1/2 in. 38 mm
Valve Installation Torque 44 - 52 lbf-ft 60 - 70 Nm
Mounting Position Unrestricted
Weight 0.84 lbs 0.38 kg
This is a spool-type flow divider/combiner valve, it can be used as a pressure-compensated device to split flow in one direction but combine flow in the opposite direction is not permitted. The valve will divide inlet flow from port 3 to port 2 and port 4 based on the ratio specified, regardless of system operating pressure conditions. If one of port 2 or port 4 is blocked, another will also block. Port 1 is not used.

  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
