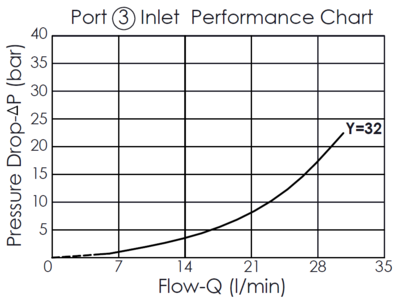

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 31A-4
Division Accuracy at Rated, Maximum Inlet Flow 50% ± 2.5%
Division Accutacy at Rated, Minimum Inlet Flow 50% ± 4.5%
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 7/8 in. 22.22 mm
Valve Installation Torque 30 - 37 lbf-ft 40 - 50 Nm
Weight 0.35 lbs 0.16 kg
This is a spool-type flow divider/combiner valve, it can be used as a pressure-compensated device to split flow in one direction and combine flow in the opposite direction. The valve will divide inlet flow from port 3 to port 2 and port 4. Regardless of system operating pressure conditions, it will combine reduced inlet flow from both port 2 and port 4 to port 3. It will keep a flow to both combining ports when ports 2 or 4 is “free-wheeling”. This function keeps parallel hydraulic-motor drive circuits from stalling in the combining mode.

  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
