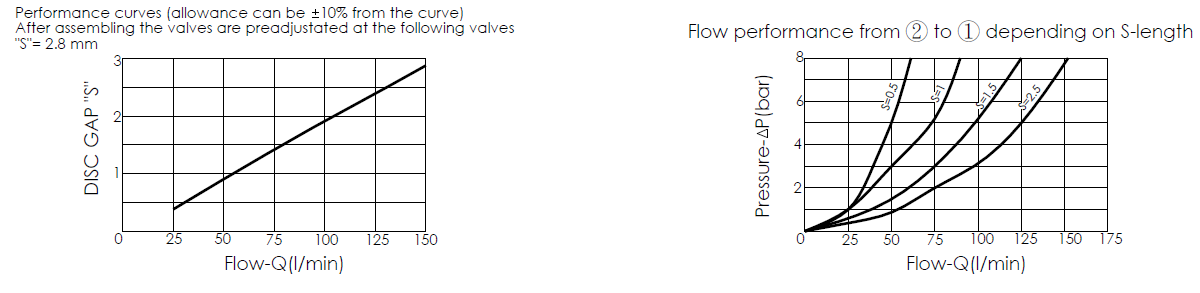

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Rated Flow 6.6 - 39.63 gpm 25 - 150 L/min
Maximum Operating Pressure 5000 psi 350 bar
Tightening Torque 2 ± 0.74 lbf-ft 3 ± 1 Nm
Weight 0.11 lbs 0.05 kg
The valve is only supposed to be operated in case of hose failure. In the event of a hose failure, flow increases across the valve until the maximum safe limit is reached, at which point the valve will close. The "S" gap must be adjusted to allow a flow at least 50% above the nominal regulated flow from the actuator. These valves can be supplied (on request) with an orifice on the disc, allowing for emergency lowering of the load. It is recommended to fit a flow regulator valve downstream of the hose burst valve, at the end of the flexible hose, to control the lowering speed to the nominal value.

  • Special flow settings can be specified when ordering. Please contact the Winner sales department to customize the factory settings.
  • Hose burst valves are designed for integration into cylinders, lines, and control blocks.
  • Winner offers a variety of flow rate settings to meet your specific needs. Once installed, these settings are secure and cannot be adjusted without authorization, ensuring reliability and safety in your operations.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
