Electro-Proportional Valves
  • Technical Data
  • Product Description

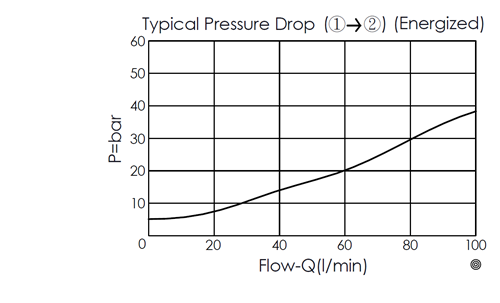

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-2
Rated Flow 11.89 gpm 45 L/min
Maximum Operating Pressure 3800 psi 260 bar
Valve Hex Size 1-1/16 in. 27 mm
Valve Installation Torque 29 - 33 lbf-ft 35 - 45 Nm
Maximum Leakage Approximately 5 drops/min at 3800 psi 5 drops/min at 260 bar
Weight 1.17 lbs (with coil), 0.64 lbs (without coil) 0.53 kg (with coil), 0.29 kg (without coil)
Coil Type EC-19A
Power Consumption 22W
This is a pilot-operated, spool type, normally closed electro-proportional throttle valve. It designed for applications requiring essentially zero leakage blocking and load-holding. This valve is similar to check valve when de-energized. Allow free flow from port 1 to port 2 and block flow from port 2 to port 1. In energized condition, this valve is allowed flow from port 2 to port 1 but it is difficult to pass that flow from port 1 to port 2.

  • Coils must be ordered separately.
  • Continuous-duty rated coil.
  • Efficient wet-armature construction.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life and essentially zero leakage.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
