Electro-Proportional Valves
  • Technical Data
  • Product Description
  • Performance Curve
  • Related Products
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 17A-3
Rated Flow 63.4 gpm 240 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/4 in. 31.7 mm
Valve Installation Torque 148 - 158 lbf-ft 200 - 215 Nm
Response Time-Typical 2 ms
Maximum Leakage Approximately 0.7 cc/min
Weight 1.1 lbs 0.5 kg
This is a pilot-operated, balanced poppet, ventable relief valve with an integral 8A-2 or 08W-2 pilot control cavity for use with any 8A-2 or 08W-2 pressure control cartridge valve. When the pressure at port 1 overcomes the pilot control setting, it pilots open port 2 and allows throttling flow to regulate the pressure. The pressure differential between port 1 and port 2 is based on the settings of the pilot control. Changes in pressure at port 2 do not affect the pressure setting, making it suitable for sequential applications. This valve with 8A-2 cavity is commonly paired with Winner proportional relief valves, such as the PRB8A or PRA8A.

  • The maximum leakage is approximately 0.7 cc/min.
  • W spring is suitable for higher pressure drop application.
  • This valve features a balanced poppet design to reduce cavitation and manifold erosion during high pressure drop applications.
  • Pressure at port 3 is added directly to the valve setting in a 1:1 ratio.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.

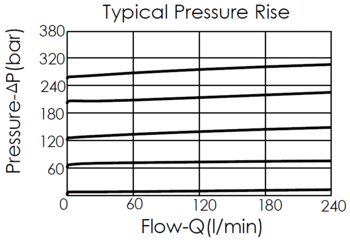

Typical pressure rise performance curve for RV17A3G pilot-operated, balanced poppet, ventable relief valve with an integral 8A-2 control cavity, showing the relationship between pressure and flow variation
1. Pilot Capacity Proportional Relief Valve (direct-acting)
PRB-8A-2D-Y-Z
PRB-8A-2C-Y-Z

2. Pilot Capacity Proportional Relief Valve (inverse direct-acting)
PRA-8A-2C-Y-Z
PRA-8A-2D-Y-Z-74
