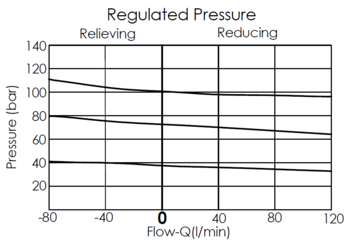

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 22A-4
Rated Flow 21.13 gpm 80 L/min
Control Pilot Flow 0.04 - 0.07 gpm 0.16 - 0.25 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/8 in. 28.57 mm
Valve Installation Torque 44 - 52 lbf-ft 60 - 70 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Weight 0.75 lbs (Z=L) 0.34 kg (Z=L)
This is a pilot-operated, spool-type reducing/relieving valve that allows bi-directional flow between port 2 and port 1. When the pressure at port 1 exceeds the pressure setting, the spool shifts to restrict flow at port 2, regulating the pressure at port 1. If the pressure at port 1 continues to rise above the valve setting, the spool shifts further to relieve excess pressure through port 3 (tank) until the set pressure is restored. Drain port (port 4) makes the valve insensitive to pressure changes at port 3.

  • When X=43, the lowest pressure will be a bit higher than standard.
  • Please note the pressure differential between inlet and reducing port when select the proper adjustment range.
  • Pressure at port 4 adds directly to the valve setting at a 1:1 ratio and should less than 350 bar (5000 psi).
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
