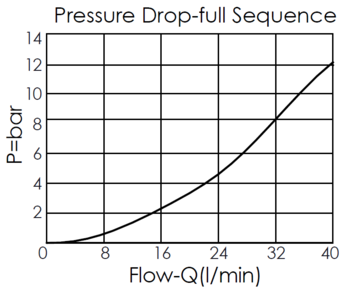

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 163A-3
Rated Flow 7.93 gpm 30 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 3/4 in. 19.05 mm
Valve Installation Torque 20 - 24 lbf-ft 27 - 33 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 1/2 in. 12.7 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Maximum Leakage Approximately 30 cc/min at 1000 psi 30 cc/min at 70 bar
Weight 0.24 lbs (Z=L) 0.11 kg (Z=L)
This is a pilot-operated, balanced piston sequence valve. When pressure at port 1 exceeds the predetermined pressure, the valve opens to supply flow to a secondary circuit, allowing bi-directional flow between port 1 and port 2. The valve is insensitive to backpressure at port 2 up to the valve setting. This valve can function as a 2-port relief valve in sub-system rises higher than the setting of the valve directing excess fluid to tank.

  • Pressure at port 3 is added directly to the valve setting in a 1:1 ratio, and must be less than 350 bar (5000 psi).
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
