Cartridge Valves
  • Technical Data
  • Product Description

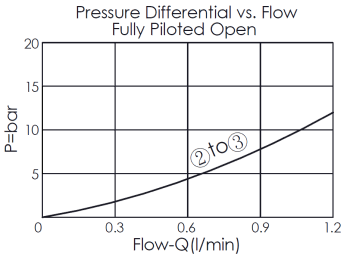

  • Performance Curve
  • Application Example
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 11A-3
Rated Flow 0.21 gpm 0.8 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 7/8 in. 22.22 mm
Valve Installation Torque 30 - 37 lbf-ft 40 - 45 Nm
Adjustment Screw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Weight 0.35 lbs 0.16 kg
This is a direct-acting, spool type, accumulator sensing, pump unloading valve. Port 1 is the accumulator port; when the pressure at port 1 reaches the predetermined setting, port 2 (unload) connects to port 3 (drain) to vent a relief valve and unload the pump. This allows flow from port 2 to port 3. When the pressure at port 1 falls below the setting, flow between port 2 and port 3 is blocked, and the pump will return to recharge the accumulator. It is important to ensure the installation of a separate check valve between port 1 and the pump while using this valve. Alternatively, the QP-21A-X-Y-Z model of the accumulator sense, pump unload valve can be considered, as it includes an integrated free-flow check valve. Note: This valve is commonly used with the RV series relief valve. To optimize efficiency, please select a valve that minimizes pressure drop.

  • Note: careful consideration should be given when selecting an adjustment range. System pressure drops and flows tend to influence the operation of unloading valves.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
