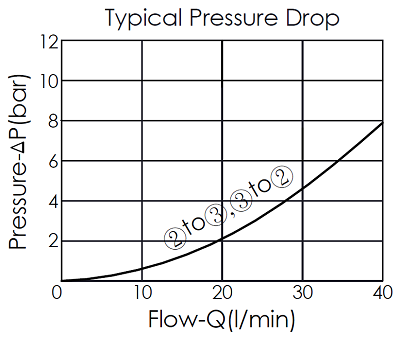

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 10W-3
Rated Flow 10.04 gpm 38 L/min
Maximum Operating Pressure 5000 psi 350 bar
Maximum Leakage Approximately 82 cc/min at 3000 psi 82 cc/min at 210 bar
Valve Hex Size 1 in. 25.4 mm
Valve Installation Torque 26 - 33 lbf-ft 35 - 45 Nm
Weight 0.35 lbs 0.16 kg
This is a direct-acting, spool-type, 2-way 2-position, normally open directional valve. It allows flow between port 3 and port 2 with a spring-biased spool. The spool will pilot-to-shift when there is sufficient pilot pressure at port 1 to overcome the spring bias and block flow between port 3 and port 2. The spring chamber is vented to the atmosphere.

  • Spool valves will have normal leakage due to spool clearance.
  • Approximately 1 drop (0.07 cc) of fluid will pass from the pilot area to the vented spring chamber every 4000 cycles.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
