Spool 4-Way 3-Position

Pagination:
Symbol Description
Direct-acting, 4-way 3-position, blocked center Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-22-Z-04 10 350 08W-4
ES-10W-4C-22-Z-04 20 350 10W-4
Direct-acting, 4-way 3-position, blocked center, high flow Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-22-Z-05 17 350 08W-4
ES-10W-4C-22-Z-05 42 350 10W-4
Direct-acting, 4-way 3-position, open center Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-23-Z-04 8 350 08W-4
Direct-acting, 4-way 3-position, open center Main Code Flow(l/min) Pressure(bar) Cavity ES-10W-4C-23-Z-04 20 350 10W-4
Direct-acting, 4-way 3-position, open center, high flow Main Code Flow(l/min) Pressure(bar) Cavity ES-10W-4C-23-Z-05 42 350 10W-4
Direct-acting, 4-way 3-position, floating center Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-24-Z-04 10 350 08W-4
ES-10W-4C-24-Z-04 20 350 10W-4
Direct-acting, 4-way 3-position, floating center, high flow Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-24-Z-05 15 350 08W-4
ES-10W-4C-24-Z-05 42 350 10W-4

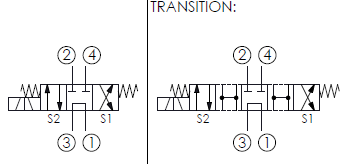

Direct-acting, 4-way, 3-position, tandem center Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-26-Z-04 8 350 08W-4
Direct-acting, 4-way 3-position, tandem center Main Code Flow(l/min) Pressure(bar) Cavity ES-10W-4C-26-Z-04 20 350 10W-4
Direct-acting, 4-way 3-position, tandem center, high flow Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-26-Z-05 13.3 350 08W-4
ES-10W-4C-26-Z-05 42 350 10W-4
Direct-acting, 4-way 3-position, port 2 to port 1 center Main Code Flow(l/min) Pressure(bar) Cavity ES-08W-4A-27-Z-05-1 15 350 08W-4
