Cartridge Control Options
| Symbol | Description | Main Code |
-
Option : “L”
Leakproof Hex.Socket Screw
L -
Option : “B”
Handknob and Aluminum Locknut
6ZAB003 -
Option : “E”
Aluminum Handknob and Locknut
6ZAE003 -
Option : “BA”
Handknob and Aluminum Locknut
6ZAB004 -
Option : “K”
Handknob with Lock Knob
(3/8”-24UNF-2A)
6ZAK001 -
Option : “K”
Handknob with Lock Knob
(5/16”-32UNEF-2A)
7ZAK001 -
Option : “KF”
Handknob with Panel Mount
KF -

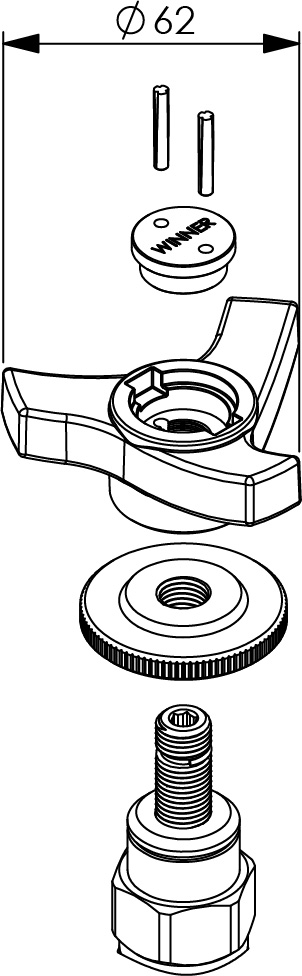

Option : “T”
Three-winged Handknob Kit
7ZAT001 -
Option : “J“
Control kit, MAX. Setting Limiter
7ZAS001 -
Option : “C”
Stainless Steel
Tamper Resistant Cover Order
(ø16.6 mm) (ø19 mm) (ø25 mm)
(ø30 mm) (ø40 mm)6GH08C_ -

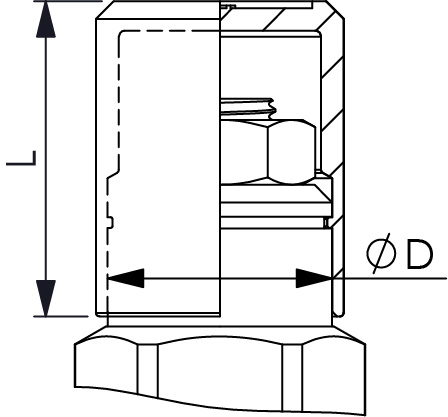

Option : “CA”
Plastic Tamper Resistant Cover
(ø19 mm, L=26.7 mm)
(ø25 mm, L=26.7 mm)5JAA09_ -

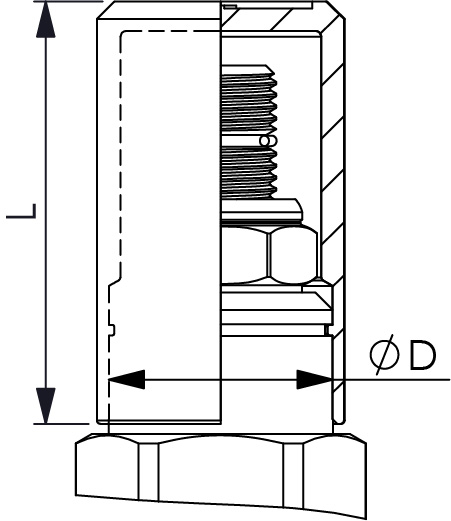

Option : “CB”
Plastic Tamper Resistant Cover
(ø19 mm, L=35.8 mm)
(ø25 mm, L=36.0 mm)5JAA09_ -

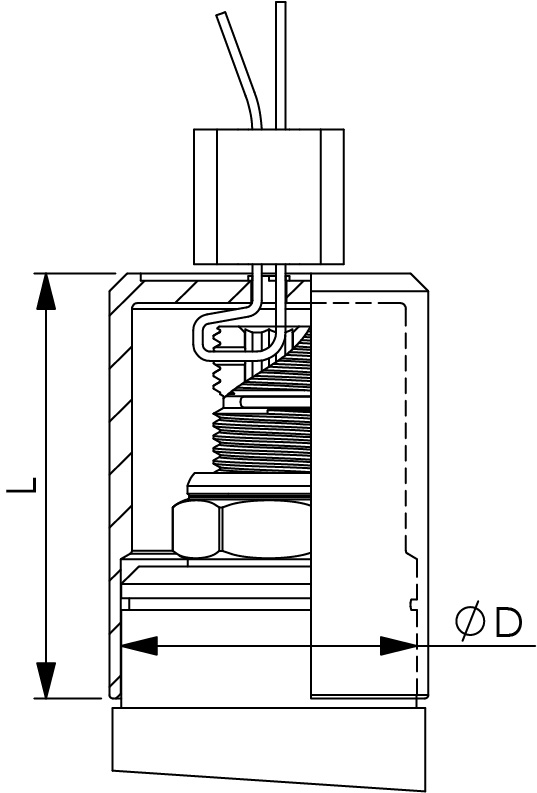

Option : “CD”
Plastic Tamper Resistant Cover with Lockwired
(CB Option with lockwired)
(ø25 mm, L=36.0 mm)
6JAA014 -
Option : “CH”
Plastic Tamper Resistant Cover
of General Type Hex. Nut
(L=27.0 mm)
5JAA097 -
Option : “CG”
Plastic Tamper Resistant Cover of General Type Hex. Nut with Lockwired
(CH Option with lockwired)
(L=27.0 mm)
6JAA015 -
Option : “D”
Plastic Tamper Resistant Cover
5JAA060 -

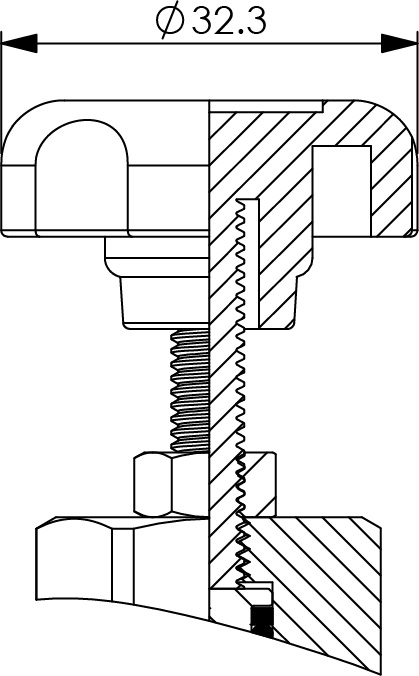

Option : “F”
Handknob and Locknut
4DCM06K001 -

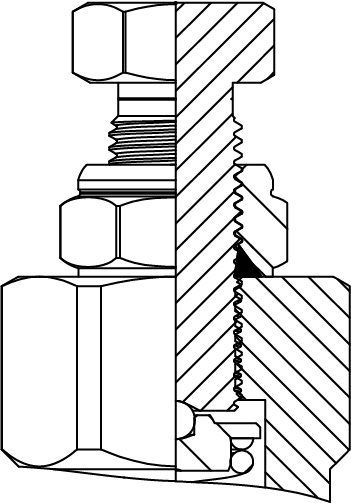

Option : “G”
Hex.Wrench Adjustment
G -

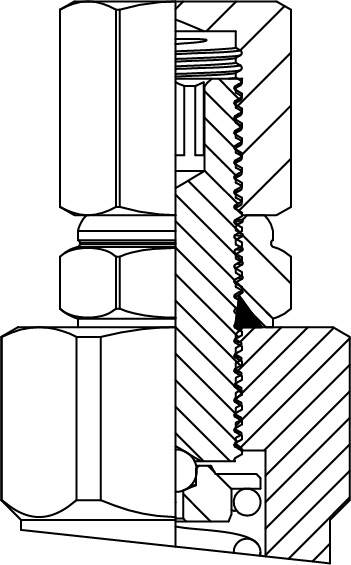

Option : “GA”
Hex. Socket Screw with Steel Cap
GA -

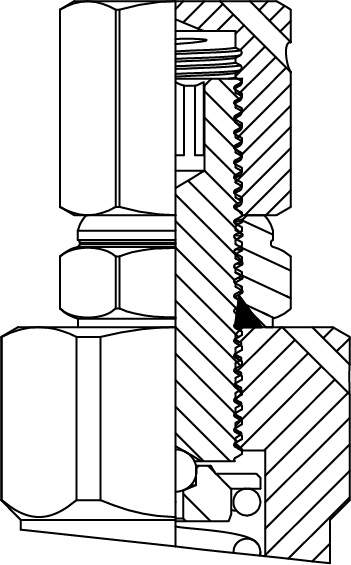

Option : “GB”
Hex. Socket Screw with Steel Cap
with Lockwire Holes
(GA Option with Lockwire Holes)GB -

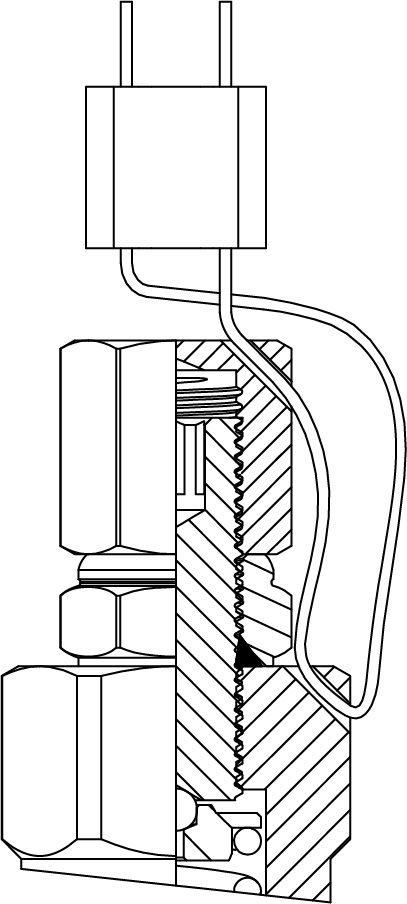

Option : “GC”
Hex. Socket Screw with Steel Cap
with Lockwired
(GB Option with Lockwire and Stop Ring)GC -

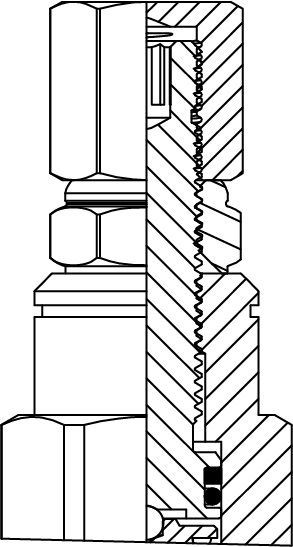

Option : “LA”
Leakproof Hex. Socket Screw
with Steel Cap6GFU12A014 -
Option : “LB”
Leakproof Hex. Socket Screw with Steel Cap
with Lockwire Holes
(LA Option with Lockwire Holes)6GFU12A015 -
Option : “LC”
Leakproof Hex. Socket Screw with Steel Cap
with Lockwired
(LB Option with Lockwire and Stop Ring)6GFU12A015、4DZAD001、 4DZAC001 -
Option : “LD”
Stainless Steel Cover with Sealed Adjustment Control Kit
7ZAD001 -

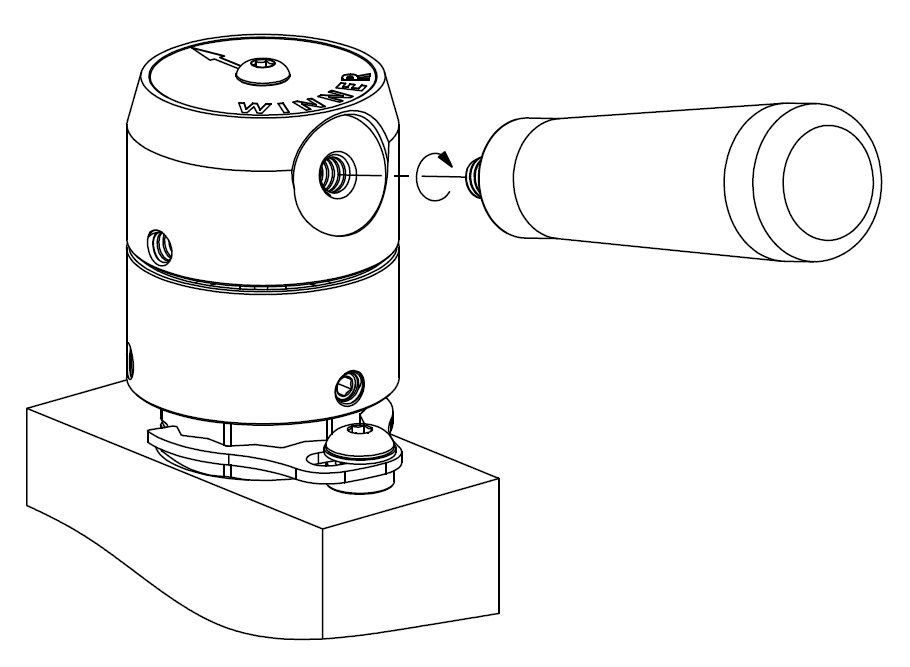

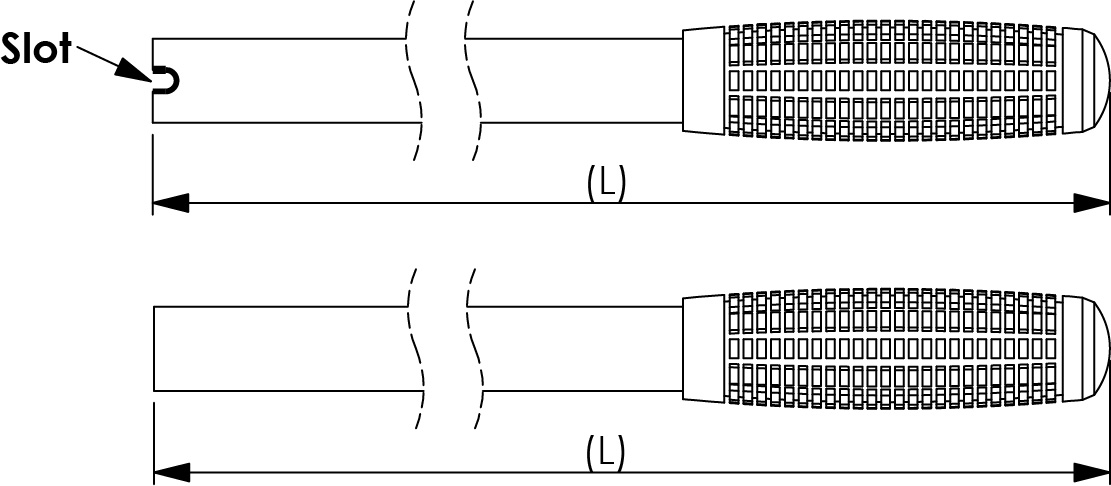

HP Hand Pump Handle Kit
7GYAG0_ -
Directional Valve Manual Rotary Components - Installation Instructions
Manual Rotary -

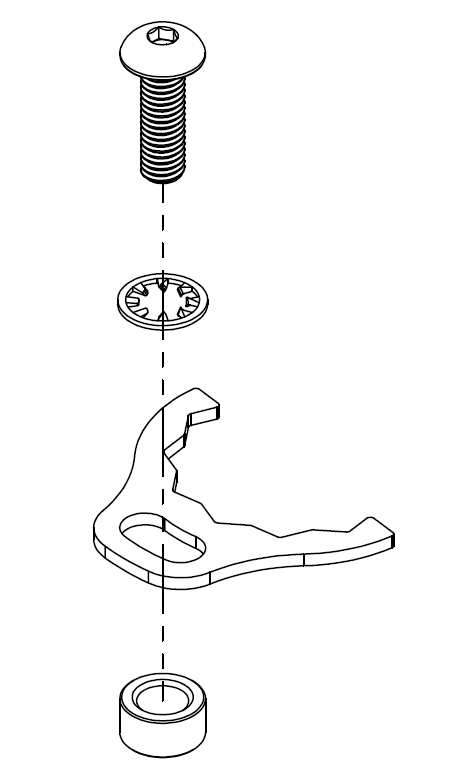

Cartridge Retainer Kit (Ordered by Value Package)
Cartridge Retainer Kit -
Cartridge Retainer Kit (Ordered by Individual Part)
Cartridge Retainer Kit -
Manual Override Knob
(Clockwise Operation, Return Automatically when Release)
R -
Manual Override Knob
(Counterclockwise Operation, Return Manually when Release)
RA -
Dual Manual Override Knob
(Clockwise Operation, Return Automatically when Release)
(Counterclockwise Operation, Return Manually when Release)
RB
