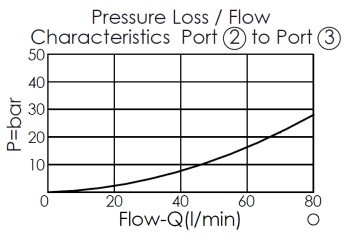

  • Performance Curve
  • Technical Reference
  • Files

Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 2A-3
Rated Flow 15.85 gpm 60 L/min
Control Pilot Flow 0.04 - 0.06 gpm 0.16 - 0.25 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/8 in. 28.57 mm
Valve Installation Torque 44 - 52 lbf-ft 60 - 70 Nm
Adjustment Screrw Internal Hex Size 5/32 in. 4 mm
Locknut Hex Size 9/16 in. 14.27 mm
Locknut Torque 6 - 7 lbf-ft 9 - 10 Nm
Weight 0.58 lbs 0.26 kg
This is a pilot-operated, spool-type, 3-way 2-position, normally open directional valve. It allows flow between port 3 and port 2 with a spring-biased spool. The spool will shift when the pressure differential between ports 1 and 3 overcomes the spring bias, blocking all ports.

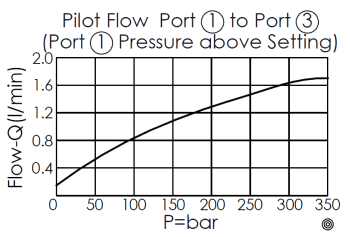

  • When the pressure at port 1 exceeds the set pressure, a control-piloted flow (0.16 - 0.25 L/min) occurs.
  • Spool valves will have normal leakage due to spool clearance.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is "90/90".
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.
