Note: Data may vary by configuration. See CONFIGURATION section.

Cavity 52A-2
Rated Flow 21.13 gpm 80 L/min
Maximum Operating Pressure 5000 psi 350 bar
Valve Hex Size 1-1/8 in. 28.57 mm
Valve Installation Torque 44 - 52 lbf-ft 60 - 70 Nm
Maximum Leakage Approximately 30 cc/min. at 1000 psi 30 cc/min. at 70 bar
Weight 1.08 lbs 0.49 kg
This is a direct-acting, spool-type, 3-way 2-position directional valve. It allows flow from port 3 to port 2 with a spring-biased spool. The spool will shift when pilot at port 1 with sufficient pressure to overcome the spring bias and allow flow from port 3 to port 4, while port 2 is blocked. Ports 2, 3 and 4 are blocked during the transition.

  • The minimum pilot pressure required to shift valve is 10 bar (150 psi).
  • The pilot pressure required for full shift at rated flow is 20 bar (300 psi).
  • All ports will accept 350 bar (5000 psi).
  • The pressure at port 6 directly opposes port 1.
  • Spool valves will have normal leakage due to spool clearance.
  • Working parts are heat-treated and high-precision ground to increase hardness for long life.
  • A variety of seal kit materials for different applications, see seals information under Technical Reference.
  • Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
  • WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
  • Winner guarantees that all products performance a 100% functional test before shipment.

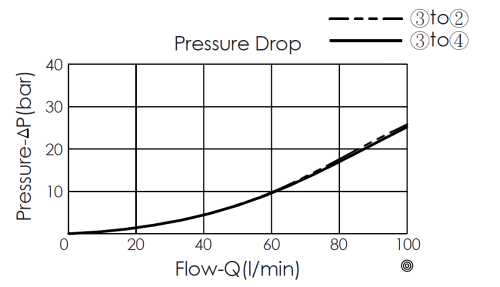

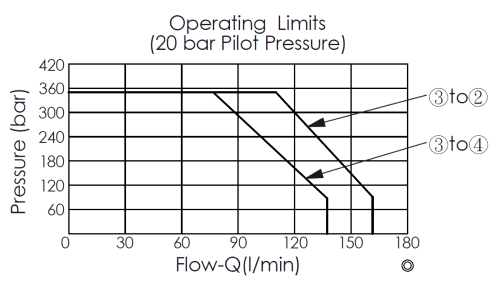

The performance curve or data is only for reference, as customers' using condition, pressure, flow, hydraulic fluid viscosity, cleanliness, temperature and so on are different, the curve or data will be different.
