Note: Data may vary by configuration. See CONFIGURATION section.
| Cavity |
10W-4 |
| Rated Flow |
5.81 gpm
22 L/min |
| Maximum Operating Pressure |
3600 psi
250 bar |
| Valve Hex Size |
1-1/16 in.
27 mm |
| Valve Installation Torque |
18 - 26 lbf-ft
25 - 35 Nm |
| Weight |
0.64 lbs
0.29 kg |
| Hysteresis |
< 4% |
| Threshold Current |
0.5 A (12V DC coil), 0.25 A (24V DC Coil) |
| Maximum Control Current |
1.5 A (12V DC coil), 0.8 A (24V DC Coil) |

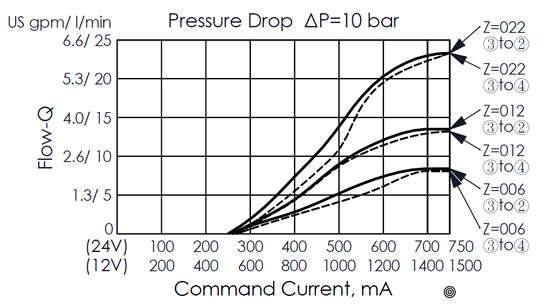

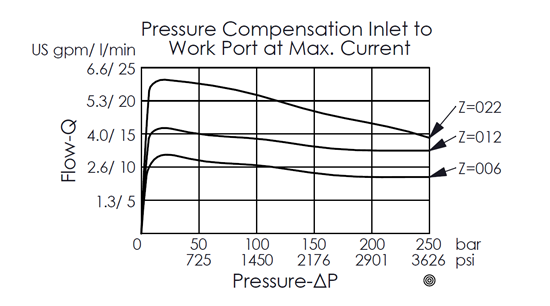

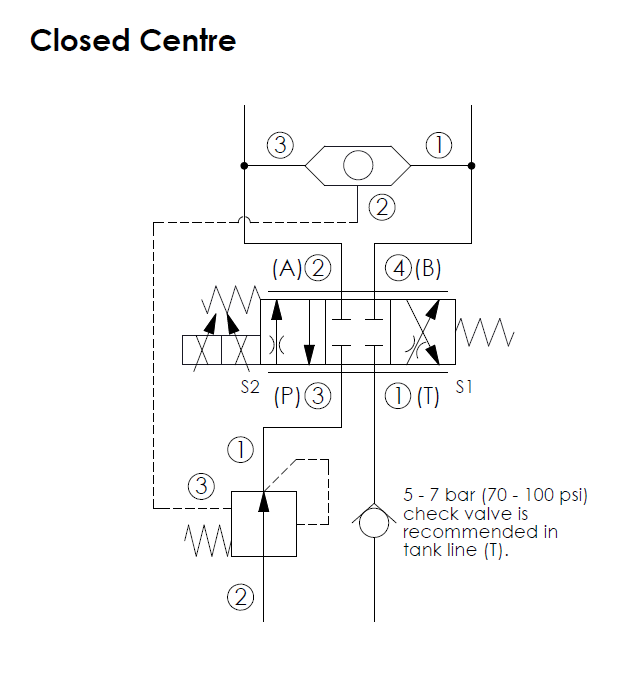

This is a direct-acting, spool-type, 4-way, 3-position proportional solenoid directional valve. When de-energized, all ports are blocked. Increasing the current to the coil S2 will cause the spool to move, the spool shifts and proportionally opens flow from port 3 to port 2, with return flow passing from port 4 to port 1. Increasing the current to the coil S1 will cause the spool to move, the spool shifts and proportionally opens flow from port 3 to port 4, with return flow passing from port 2 to port 1.
- Working parts are heat-treated and high-precision ground to increase hardness for long life.
- A variety of seal kit materials for different applications, see seals information under Technical Reference.
- Winner's cartridges pressure rating tested to the standard of the NFPA specification T2.6.1 and the fatigue rating's assurance and verification level is “90/90”.
- WINNERcoat® Zinc-Nickel Plating is salt spray tested in accordance with DIN EN ISO 9227 for up to 1000 hours.
- Winner guarantees that all products performance a 100% functional test before shipment.
