2 Ports
- YOUR SELECTIONS :
- All
| Function | Symbol | Description | Main Code | Flow (l/min) |
Pressure (bar) |
Cavity- Tooling |
-
2 ports ).gif)
Fixed Orifice, Pressure Compensated, with Reverse Flow Check
FR-162A-2C-Y-Z 0.4-11 350 162A-2 FR-13A-2C-Y-Z 0.4-23 350 13A-2 FR-16A-2C-Y-Z 0.8-95 350 16A-2 -
2 ports
Fixed Orifice, Pressure Compensated
FR-13A-2F-Y-Z 0.4-23 10-350 13A-2 FR-5A-2F-Y-Z 0.4-45 10-350 5A-2 FR-16A-2F-Y-Z 0.8-95 10-350 16A-2 FR-18A-2F-Y-Z 1-200 10-350 18A-2 FR-13A-2F-Y-Z-1 10 10-350 13A-2 FR-08W-X-Y-Z 12 240 08W-2 FR-10W-20-Y-Z 23 240 10W-2 FR-16W-2F-Y-Z 120 350 16W-2 FR-33MC-2F-Y-Z 120 350 33MC-2 -
2 ports .png)
Fixed Orifice, Pressure Compensated
FR-08W-22-Y-Z 20 350 08W-2 FR-10W-22-Y-Z 40 350 10W-2 -
2 ports
Fully Adjustable Pressure Compensated Flow Control Valve with Reverse Flow Check and Sharp-Edge Orifice
FR-13A-20-Y-Z 23 350 13A-2 FR-20MC-20-Y-Z 23 350 20MC-2 FR-5A-20-Y-Z 45 350 5A-2 FR-16A-20-Y-Z 95 350 16A-2 FR-18A-20-Y-Z 200 350 18A-2 -
2 ports
Fully Adjustable Needle with Reverse Flow Check
NC-162A-21-Y-Z 15 350 162A-2 NC-20MC-21-Y-Z 30 350 20MC-2 -
2 ports Fully Adjustable Needle with Reverse Flow Check and Sharp-Edge Orifice
NC-13A-21-Y-Z 25 350 13A-2 NC-5A-21-Y-Z 50 350 5A-2 NC-16A-21-Y-Z 120 350 16A-2 NC-18A-21-Y-Z 210 350 18A-2 -
2 ports
Fixed Orifice, Non-Pressure Compensated, With Reverse Flow Check
NC-08W-20-Y-N-Z 30 350 08W-2 NC-08W-22-Y-N-Z 30 350 08W-2 NC-10W-20-Y-N-Z 60 350 10W-2 NC-10W-22-Y-N-Z 60 350 10W-2 -
2 ports
Fully Adjustable Needle with Reverse Flow Check
NC-08W-20-Y-Z 35 350 08W-2 NC-10W-20-Y-Z 45 350 10W-2 NC-12W-20-Y-Z 120 350 12W-2 NC-16W-20-Y-Z 150 350 16W-2 NC-21E-20-Y-Z 150 350 21E-2 -
2 ports
Fully Adjustable Needle, Pilot Capacity
NF-8A-20-Y-Z 0.8 350 8A-2 -
2 ports Fully Adjustable Needle, Compact Design
NV-162A-X-Y-Z 15 350 162A-2 -
2 ports ).png)

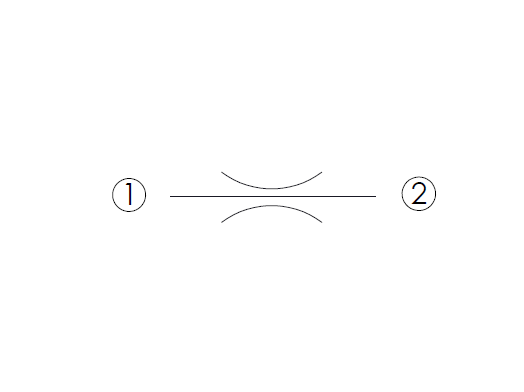

Fixed Orifice
NV-162A-2F-Y-Z 15 350 162A-2 -
2 ports Fully Adjustable Needle with Sharp-Edge Orifice
NV-13A-20-Y-Z 25 350 13A-2 NV-5A-20-Y-Z 50 350 5A-2 NV-16A-20-Y-Z 100 350 16A-2 NV-18A-20-Y-Z 240 350 18A-2 -
2 ports Fully Adjustable Needle
NV-08W-20-Y-Z 36 350 08W-2 NV-20M-20-Y-Z 40 350 20M-2 NV-10W-20-Y-Z 50 350 10W-2 NV-17E-20-Y-Z 58 350 17E-2 NV-12W-20-Y-Z 126 350 12W-2 NV-21E-20-Y-Z 126 350 21E-2 NV-16W-20-Y-Z 150 350 16W-2 -
2 ports Fully Adjustable Needle with Low Noise and Sharp-Edge Orifice
NV-10W-20-67-Z 50 350 10W-2 -
2 ports Fully Adjustable Needle Valve, High Capacity
NV-13A-28-Y-Z 80 350 13A-2 NV-5A-28-Y-Z 170 350 5A-2 NV-16A-28-Y-Z 340 350 16A-2 NV-18A-28-Y-Z 520 350 18A-2 -
2 ports
Electro-Proportional, Normally Closed With Cable
PEP-08W-2A-X-Y-Z 22 250 08W-2 -
2 ports
Electro-Proportional, Normally Closed
PEP-10W-2D-Y-N-Z 55 260 10W-2 PEP-12W-2D-Y-N-Z 70 260 12W-2 PEP-16W-2D-Y-N-Z 100 260 16W-2 PEP-20W-2D-Y-N-Z 100 260 20W-2 -
2 ports
Electro-Proportional, Normally Closed, Fast-Acting
PEV-5A-2D-09-Y-Z 120 350 5A-2 PEV-16A-2D-09-Y-Z 240 350 16A-2 PEV-16W-2D-09-Y-Z 240 350 16W-2 PEV-16WS-2D-09-Y-Z 240 350 16WS-2 PEV-18A-2D-09-Y-Z 320 350 18A-2 -
2 ports
Electro-Proportional Flow Control Valve, Normally Closed Throttle
PFC-13A-2D-Y-Z 40 350 13A-2 PFC-5A-2G-Y-Z 80 350 5A-2 -
2 ports Electro-Proportional, Normally Closed Throttle
PFC-17E-2G-Y-Z 70 350 17E-2 -
2 ports
Electro-Proportional Flow Control Valve, Normally Open Throttle
PFH-13A-2D-Y-Z 28 350 13A-2 PFH-22M-2D-Y-Z 28 350 22M-2 PFH-5A-2G-Y-Z 56 350 5A-2 -
2 ports .PNG)
Fixed Orifice, Non-Pressure Compensated, With Reverse Flow Check
NC-162A-21-Y-N-Z 30 350 162A-2 -
2 ports .png)
Electro-Proportional, Normally Open
PEP-10W-2D-02-Y-Z 45 260 10W-2 PEP-12W-2D-02-Y-Z 70 260 12W-2 PEP-16W-2G-02-Y-Z 90 260 16W-2 PEP-20W-2G-02-Y-Z 95 260 20W-2
